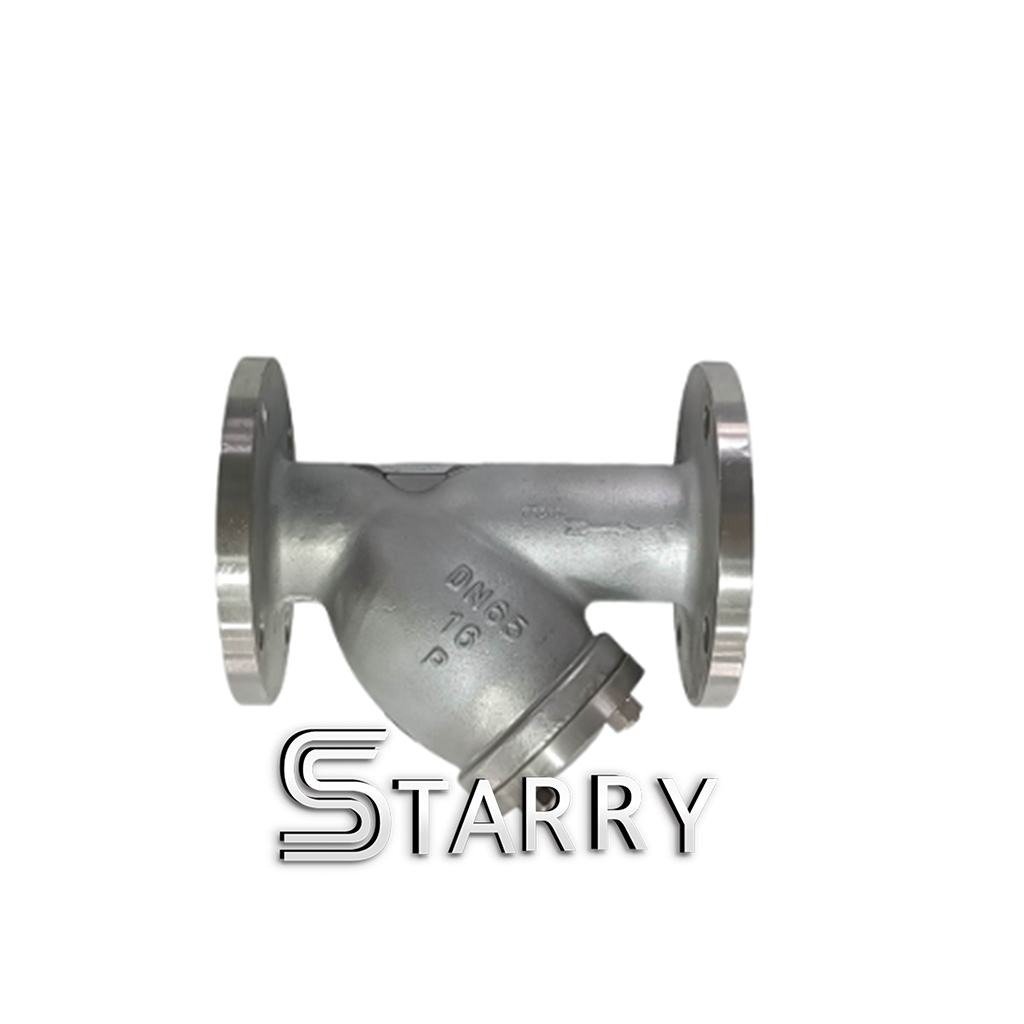

Type Y filter

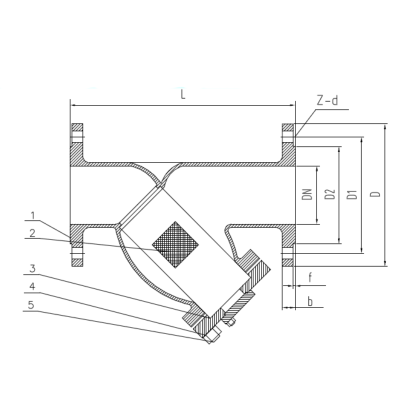

尺寸表(mm)
DN L D D1 D2 Z-φd b f
15 145 95 65 45 4-14 14 2
20 150 105 75 55 4-14 14 2
25 155 115 85 65 4-14 14 2
32 180 135 100 78 4-18 16 2
40 200 145 110 85 4-18 16 3
50 220 160 125 100 4-18 16 3
65 250 180 145 120 4-18 18 3
80 280 195 160 135 8-18 20 3
100 320 215 180 155 8-18 20 3
125 370 245 210 185 8-18 22 3
150 430 280 240 210 8-18 24 3
200 495 335 295 265 8-23 26 3
250 550 405 355 320 12-23 30 3
300 640 460 410 375 12-25 30 4
350 700 520 470 435 16-25 34 4
400 800 580 525 485 16-30 36 4
450 850 640 585 545 20-30 40 4
500 900 705 650 608 20-34 44 4

Product Details

Technical Parameters:

Working pressure: PN16

Applicable medium: medium containing nitric acid

Temperature range: - 20°C ~ 200°C

Sizes: DN15 - DN500

Number of filter meshes: 60 positions

Our ability to create

Our factory is compliant with ISO 9001:2015 standards.

We value the quality of all processes. We make sure that our valves can withstand the worst environmental pressures.

Stainless Steel Valves are manufactured in our factories, ensuring the quality of each valve and 99.99 % delivery accuracy.

If you have special valve performance requirements, you can contact us and we offer several customized services.
