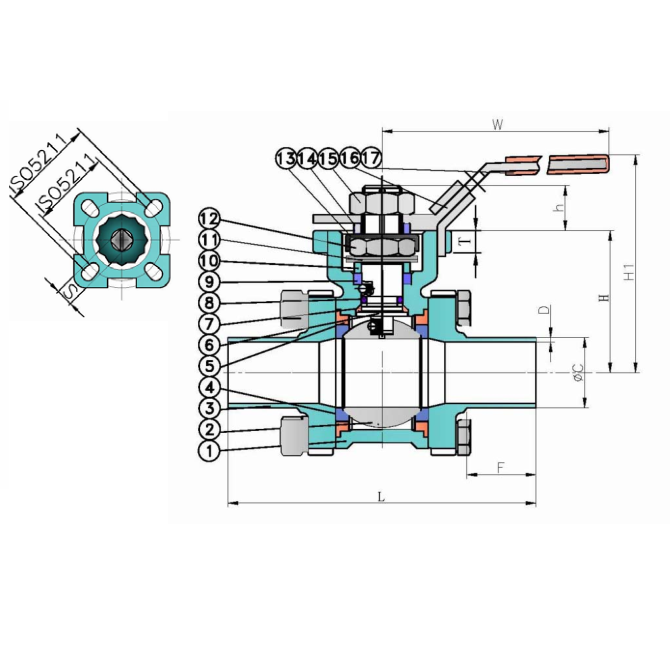

| 尺寸表(mm) | ||||||||||||||||||
| NPS | DN | L | ASME BPE.2005 | ISO 2037 | ISO3008 | DIN | h | F | T | S | W | H | H1 | |||||
| 11850.2 | ||||||||||||||||||
| C | D | C | D | C | D | C | D | L | ||||||||||
| 1/2″ | 15 | 75 | 12.7 | 1.65 | 17.2 | 1 | / | / | 19 | 1.5 | 75 | 9.5 | 10 | 6 | 9 | 130 | 35 | 64 |
| 3/4″ | 20 | 106 | 19.1 | 1.65 | 21.3 | 1 | / | / | 23 | 1.5 | 89 | 9.5 | 25 | 6 | 9 | 130 | 39 | 70 |
| 1 | 25 | 112 | 25.4 | 1.65 | 25 | 1.2 | 25 | 1.2 | 29 | 1.5 | 99 | 11.5 | 25 | 8 | 11 | 165 | 50.5 | 95 |
| 25 | 1.6 | |||||||||||||||||
| 1-1/4″ | 32 | 124 | / | / | 33.7 | 1.2 | 32 | 1.2 | 35 | 1.5 | 110 | 11.5 | 25 | 8 | 11 | 165 | 55.5 | 98 |
| 33.7 | 1.6 | |||||||||||||||||
| 1-1/2″ | 40 | 137 | 38.1 | 1.65 | 38 | 1.2 | 38 | 1.2 | 41 | 1.5 | 125 | 15 | 25 | 10 | 14 | 190 | 66 | 100 |
| 38 | 1.6 | |||||||||||||||||
| 2 | 50 | 157 | 50.8 | 1.65 | 51 | 1.2 | 51 | 1.5 | 53 | 1.5 | 150 | 15 | 30 | 10 | 14 | 190 | 68.1 | 108 |
| 51 | 1.6 | |||||||||||||||||
| 2-1/2″ | 65 | 192 | 63.5 | 1.65 | 63.5 | 1.6 | 63.5 | 1.5 | 70 | 2 | 190 | 18.5 | 35 | 12 | 17 | 250 | 93.5 | 145 |
| 3″ | 80 | 212 | 76.2 | 1.65 | 76.1 | 1.6 | 76 | 2 | 85 | 2 | 220 | 18.5 | 38 | 12 | 17 | 250 | 104 | 160 |
| 4″ | 100 | 243 | 102 | 2.11 | 102 | 2 | 102 | 2 | 104 | 2 | 270 | 23 | 38 | 12 | 22 | 300 | 112 | 182 |

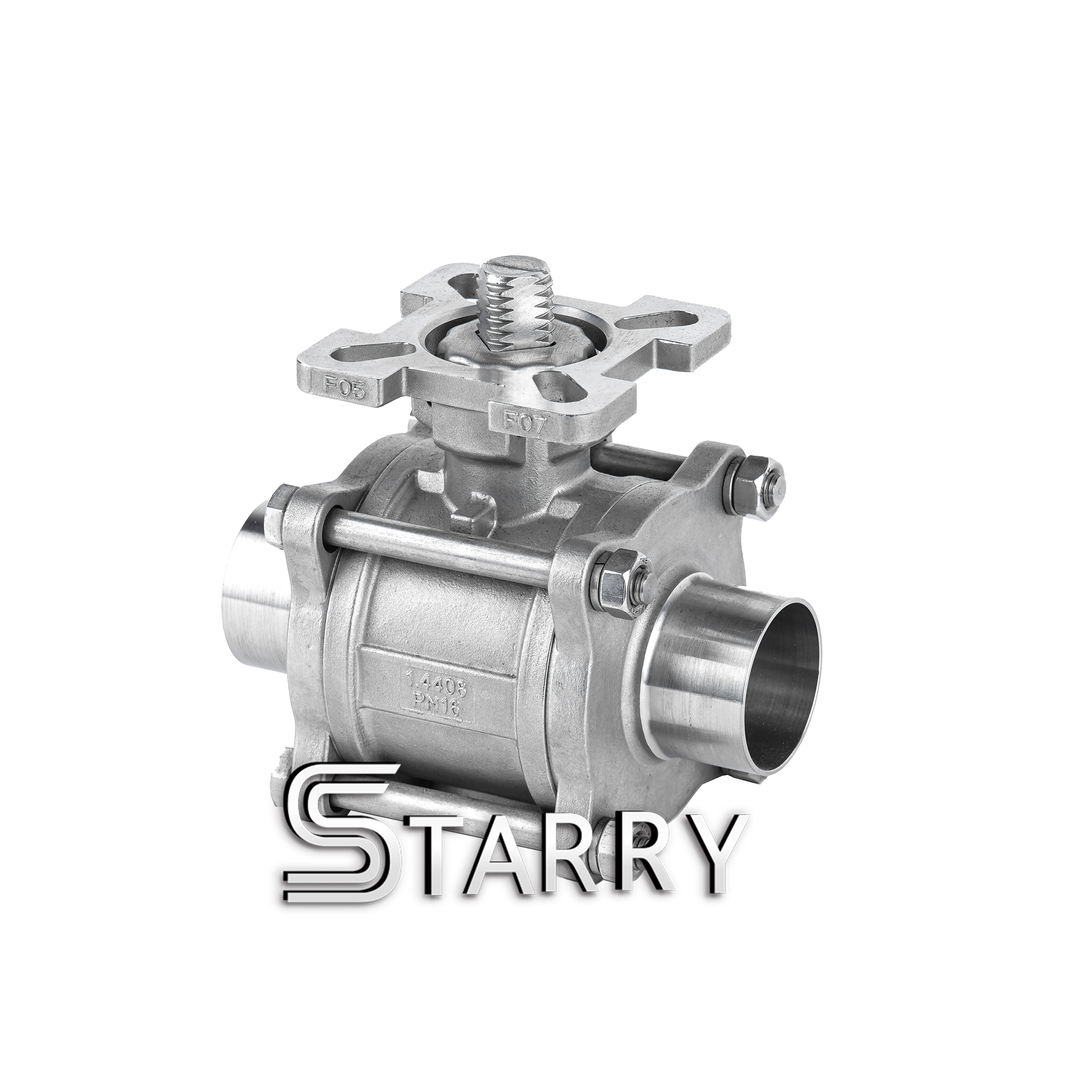

V.32W Sanitary Welding ASME BPESMS3008
Technical Parameters:
Temperature range: 20°C ~ + 180°C
Our factory is compliant with ISO 9001:2015 standards.
We value the quality of all processes. We make sure that our valves can withstand the worst environmental pressures.
Stainless Steel Valves are manufactured in our factories, ensuring the quality of each valve and 99.99 % delivery accuracy.
If you have special valve performance requirements, you can contact us and we offer several customized services.
