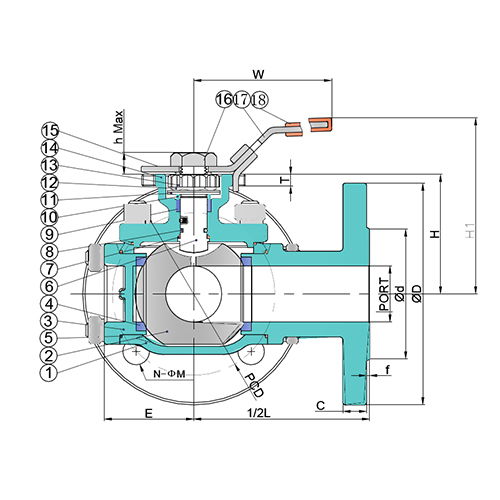

| 尺寸表(mm) | |||||||||||||||||
| SIZE | PORT | D | L | PCD | C | N | ØM | d | f | E | T | H | H1 | w | h | s | |
| 1/2" | PN16 PN40 | 15 | 95 | 170 | 65 | 12 | 4 | 14 | 45 | 2 | 37.5 | 5 | 51.5 | 82 | 130 | 10 | |
| 3/4" | PN16 PN40 | 20 | 105 | 182 | 75 | 14 | 4 | 14 | 58 | 40.5 | 5 | 57.5 | 88 | 130 | 10 | 9 | |
| 1" | PN16 PN40 | 25 | 115 | 198 | 85 | 14 | 4 | 14 | 68 | 46.5 | 7 | 67 | 106 | 165 | 12 | ||
| 1-1/4" | PN16 PN40 | 32 | 140 | 224 | 100 | 16 | 4 | 18 | 78 | 54 | 7 | 72 | 112 | 165 | 12 | 11 | |
| 1-1/2″ | PN16 PN40 | 38 | 150 | 238 | 110 | 16 | 4 | 18 | 88 | 2 | 60.5 | 8 | 81 | 120 | 190 | 16 | |
| 2″ | PN16 PN40 | 50 | 165 | 276 | 125 | 18 | 4 | 18 | 102 | 71 | 8 | 86.5 | 128 | 190 | 16 | 14 | |
| 2-1/2" | PN16 | 65 | 185 | 314 | 145 | 16 | 48 | 18 | 122 | 85 | 12 | 103 | 154 | 250 | 19 | 17 | |
| PN40 | 20 | ||||||||||||||||
| 3" | PN16 | 76 | 200 | 356 | 160 | 18 | 8 | 18 | 138 | 100.5 | 12 | 114.5 | 165 | 250 | 19 | 17 | |
| PN40 | 22 | ||||||||||||||||
| 4″ | PN16 | 100 | 220 | 402 | 180 | 18 | 8 | 18 | 158 | 119 | 12 | 128 | 198 | 300 | 24 | 22 | |
| PN40 | 235 | 190 | 22 | 162 | |||||||||||||
Product Characteristics:
Full pass
antistatic design
Explosion resistant design of the valve
Locking device (optional)
High temperature sealing material (optional)
Vacuum valve (optional)
Technical Parameters:
Temperature range: - 20°C ~ + 180°C
Vacuum: 10 - Torr
Working pressure: PN16 PN40 Class150 Class300
