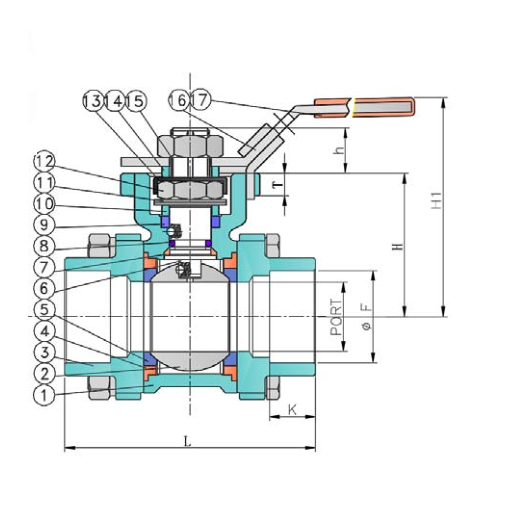

| 螺纹尺寸表(mm) | ||||||||||
| NPS | DN | PORT | L | E | T | s | h | H | H1 | W |
| 1/4" | 8 | 11.2 | 60 | 11 | 6 | 9 | 9.5 | 35 | 64 | 130 |
| 3/8" | 10 | 12.5 | 60 | 11.4 | 6 | 9 | 9.5 | 35 | 64 | 130 |
| 1/2" | 15 | 15 | 75 | 15 | 6 | 9 | 9.5 | 35 | 64 | 130 |
| 3/4" | 20 | 20 | 80 | 16.3 | 6 | 9 | 9.5 | 39 | 70 | 130 |
| 1" | 25 | 25 | 90 | 19.1 | 8 | 11 | 11.5 | 50.5 | 95 | 165 |
| 1-1/4" | 32 | 32 | 110 | 21.4 | 8 | 11 | 11.5 | 55.5 | 98 | 165 |
| 1-1/2″ | 40 | 38 | 120 | 21.4 | 10 | 14 | 15 | 66 | 100 | 190 |
| 2″ | 50 | 50 | 140 | 25.7 | 10 | 14 | 15 | 68.1 | 108 | 190 |
| 2-1/2" | 65 | 65 | 185 | 30.2 | 12 | 17 | 18.5 | 93.5 | 145 | 250 |
| 3" | 80 | 76 | 205 | 33.3 | 12 | 17 | 18.5 | 104 | 160 | 250 |
| 4" | 100 | 100 | 240 | 39.3 | 12 | 22 | 23 | 112 | 182 | 300 |
Technical Parameters:
Temperature range: - 20°C ~ + 180°C
Vacuum: 10 - 1 Torr
Working pressure: PN40
Our factory is compliant with ISO 9001:2015 standards.
We value the quality of all processes. We make sure that our valves can withstand the worst environmental pressures.
Stainless Steel Valves are manufactured in our factories, ensuring the quality of each valve and 99.99 % delivery accuracy.
If you have special valve performance requirements, you can contact us and we offer several customized services.
